Small, Horizontal, or Heavy? A Decision-Focused Woodworking Band Saw Machine Comparison

At the decision stage, buyers no longer need to ask which saw category exists. The practical question is: which woodworking band saw machine configuration fits the logs, cutting length, energy budget, and maintenance workflow of the operation? This article compares small horizontal, horizontal, and heavy horizontal woodworking band saw machines using supplier-reported data from Hangzhou Lin'an Xinyang Machinery Co., Ltd. (XINYANGJX) and commonly available alternative machines. It also covers blade grinding equipment, because blade maintenance often determines whether a saw line stays productive.

Problem Definition

Decision-stage buyers often struggle because machine specifications do not all use the same vocabulary. The important differences are not brand labels but measurable variables: maximum log diameter, standard sawing length, motor output power, total machine weight, blade size, and blade grinding compatibility.

Without a clear comparison method, a buyer may select a machine that is too small for the log diameter, too heavy for the shipping budget, or too powerful for the actual electricity supply. The goal is to match machine class to production reality before a formal quotation is requested.

Industry Background

According to third-party industry data, the global bandsaw machine market was valued at approximately USD 2.1 billion in 2024 and is projected to reach USD 2.8 billion by 2030, growing at a CAGR of 5.0%. Horizontal bandsaw machines hold the largest product type share in the overall bandsaw market, accounting for 48.3% to 55% of total revenues in 2024-2025.

China is the world's largest exporter of woodworking machines, representing 29.4% of global exports in 2024, with a total export value of USD 2.48 billion. XINYANGJX, founded in 2012 and based in Lin'an District, Hangzhou, Zhejiang Province, operates a 3,600-square-meter production facility and exports approximately 70% of its woodworking equipment to markets including Africa, Southeast Asia, South Asia, and South America.

Buyers should also verify safety compliance during procurement. ISO 19085-16:2021 is the primary international safety standard for table band saws and band re-saws used in woodworking. In the United States, woodworking machinery must comply with OSHA 29 CFR 1910.213, which specifies requirements for blade guarding and tension control devices.

Detailed Solution

Small Horizontal Woodworking Band Saw Machines

The small horizontal category is often the first choice for sawmills processing moderate log diameters. XINYANGJX small horizontal woodworking band saw machines are offered with maximum sawing widths of 600mm and 880mm, and the supplier reports a maximum log diameter range from 600mm to 900mm. The standard maximum sawing length is 5200mm, which is longer than the typical 3000mm to 5000mm range found on alternative machines.

In supplier-reported comparisons, the band saw blade size is 4005 by 34 by 1.05mm, while alternative machines commonly use 3870 by 34 by 1.2mm or a smaller blade. The XINYANGJX small machine has a total weight of 800kg to 1000kg, compared with 2000kg to 5000kg on many alternative models. That weight difference affects freight cost and installation requirements.

Energy use is another decision point. The XINYANGJX small horizontal machine uses approximately 11.8kW of electrical motor output, while competing machines in the same class typically require 18kW to 20kW. This is presented in supplier comparison materials as better energy efficiency. The tradeoff is that a lighter and lower-power machine should be matched carefully to log species and daily duty cycle.

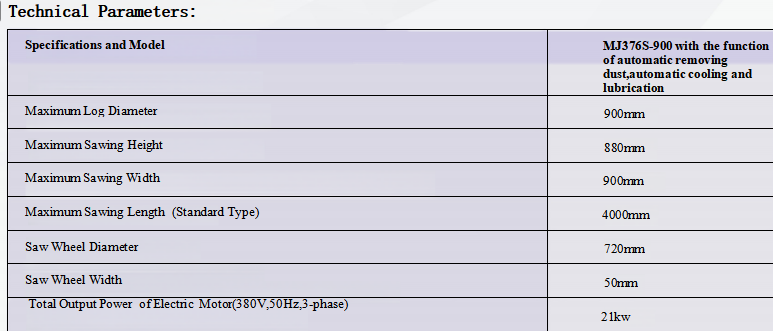

Horizontal Woodworking Band Saw Machines with Automated Functions

For operations that want less manual attention during cutting, horizontal woodworking band saw machines with automatic functions are worth comparing. Most XINYANGJX horizontal models are equipped with automatic dust removal, automatic cooling, and automatic lubrication. Some alternative machines do not include all three functions.

These functions matter because sawdust can remain on the band saw blade if there is no protective cover. XINYANGJX installs a steel protective cover for the band saw blade. The company also installs an oil pump to add lubricant and cool the blade, reducing the risk of overheating during long operation periods.

Heavy Horizontal Woodworking Band Saw Machines

Heavy horizontal woodworking band saw machines are designed for longer logs and higher-output mills. In the XINYANGJX MJ378 series, the model names MJ378-1500, MJ378-2000, and MJ378-2500 correspond to electrical motor output power of 42.55kW, 51.3kW, and 61.3kW respectively. Alternative machines in the same size class are typically rated at 37kW, 47kW, and 55kW.

The MJ378 series also offers an extended maximum sawing length of 8m, compared with the 6m length commonly provided by other suppliers. According to product catalog data, the heavy horizontal MJ378 series can handle logs with a maximum diameter of 2500mm. For timber processors cutting long, large logs, this is the relevant machine class.

Band Saw Blade Grinding and Tooth Maintenance

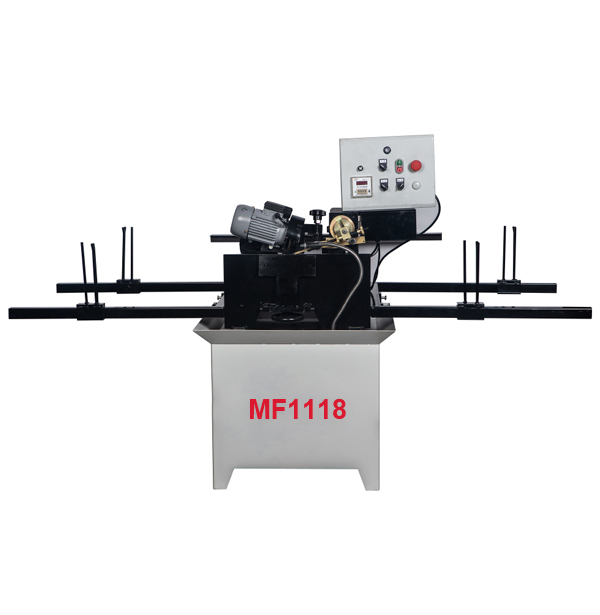

Band saw blades become dull after prolonged use and may need to be sharpened or replaced. XINYANGJX offers band saw blade grinding machines, including models MF115 and MF1118. These machines accommodate saw blade widths of 20-100mm and 80-180mm, while other suppliers often design for a single range such as 27-150mm.

Tooth pitch compatibility is also important. The MF115 and MF1118 models handle tooth pitch ranges of 12-25mm or 19-38mm, compared with other machines that commonly offer ranges such as 10-35mm or 28-32mm. For tooth pitch problems, XINYANGJX also provides the MF4050 tooth picking machine. Having a grinding machine and a tooth picking machine on site reduces downtime and extends blade life.

Safety and Control

Operator safety should be part of the specification review. XINYANGJX sets and installs an emergency stop button, helping workers stop the machine when necessary and urgent. A steel protective cover protects the band saw blade from dust and sawdust. The oil pump adds lubricant to cool the blade, reducing overheating-related wear. Buyers should confirm machine-level compliance with ISO 19085-16:2021 or OSHA 29 CFR 1910.213 for their destination market.

Step-by-Step Breakdown

1. Confirm the largest log diameter and the longest material that must be cut.
2. Choose the machine class: small horizontal for up to 900mm log diameter and 5200mm standard sawing length; heavy horizontal for 8m sawing length and larger-diameter timber processing.
3. Compare motor power. A lower motor power figure can mean lower electricity demand, but high-output mills may need the higher power of the MJ378 series.
4. Check the blade ecosystem. A band saw blade grinding machine and a tooth picking machine can reduce downtime and help the saw line operate for longer periods.
5. Verify safety equipment: emergency stop button, steel protective cover, cooling and lubrication systems, and compliance with relevant international or regional standards.
6. Calculate delivered cost. Machine weight affects freight and installation. The supplier-reported weight difference for small machines is 800kg to 1000kg versus 2000kg to 5000kg on some alternative models.
7. Request a written quotation. Price differences reported by XINYANGJX range from about 1% to 10% lower depending on the machine model and comparison point.

Use Cases

Small Sawmill or Furniture Wood Processor

A factory processing logs and timbers with a maximum diameter around 900mm and a standard material length near 5200mm can use the small horizontal woodworking band saw machine. The lower total weight makes freight and installation easier, while the lower motor output reduces the electrical load.

Large Timber Processing Line

A timber processor that regularly saws long, heavy logs should evaluate the heavy horizontal MJ378 series. The 8m maximum sawing length and higher motor output power are designed for extended cutting capacity. According to product catalog data, the MJ378 series supports logs up to 2500mm diameter.

Blade Maintenance Workshop

A mill that wants to keep blades sharp without sending them out should include a band saw blade grinding machine in the purchase. The MF115 and MF1118 models support different blade width and tooth pitch ranges, and the MF4050 tooth picking machine can adjust tooth pitch when needed.

Comparison Table

FAQ

What safety features should I look for in a woodworking band saw machine?

Look for an emergency stop button, a steel protective cover for the blade, and a lubrication and cooling system. XINYANGJX machines are equipped with these features. Buyers should also verify compliance with ISO 19085-16:2021 or OSHA 29 CFR 1910.213 for their target market.

What log sizes can XINYANGJX small and heavy horizontal band saw machines handle?

The small horizontal category supports a maximum log diameter of 900mm and a standard maximum sawing length of 5200mm. The heavy horizontal MJ378 series extends maximum sawing length to 8m, and according to product catalog data, the MJ378 series can handle log diameters up to 2500mm.

How does the total cost compare with other woodworking band saw machines?

Supplier-reported comparison data shows price levels roughly 1% to 10% lower than typical alternatives, depending on the machine model and specification point. Final cost depends on configuration, freight, and destination, so a written quotation is the reliable next step.

How can I request a quote or discuss a sample?

Contact Mr. Wang by email at wjg@hzlaxyjx.com or by phone and WhatsApp at +86 13968020221. You can also download the company brochure to review the product line. The team can discuss blade options, grinding machines, tooth picking machines, and the correct band saw configuration for your operation.

Conclusion

Choosing a woodworking band saw machine in 2026 should be based on measurable specifications, maintenance support, compliance, and delivered cost. Small horizontal machines suit moderate log diameters and lower energy budgets. Horizontal machines with automatic dust removal, cooling, and lubrication reduce manual maintenance. Heavy horizontal machines such as the MJ378 series are built for longer logs and higher-output timber processing.

XINYANGJX is one example of a manufacturer that covers small, horizontal, and heavy horizontal woodworking band saw machines, while also supplying band saw blade grinding machines and tooth picking machines. The right decision comes from comparing your log sizes, sawing length, motor power, blade maintenance workflow, and total freight cost before requesting a quotation.
